Step 1: Prepare the Bike

  • Turn off the bike and remove the battery completely.
  • Press and hold the power button on the display to discharge remaining energy.
  • If you don’t have a bike stand, gently flip the bike upside down onto a soft towel or blanket to protect the grips and display.

Step 2: Unplug the Motor

  • Use snips or clippers to cut the zip ties holding the motor cable to the frame.
  • Locate the motor plug and gently disconnect it. Align the arrows when pulling apart to avoid damage.

Step 3: Loosen the Rear Wheel

  • Use a wrench to loosen the bolts on each side of the axle.
  • Remove the nut and washer, sliding them down the motor cable.
  • Slide the derailleur guard down the same cable.

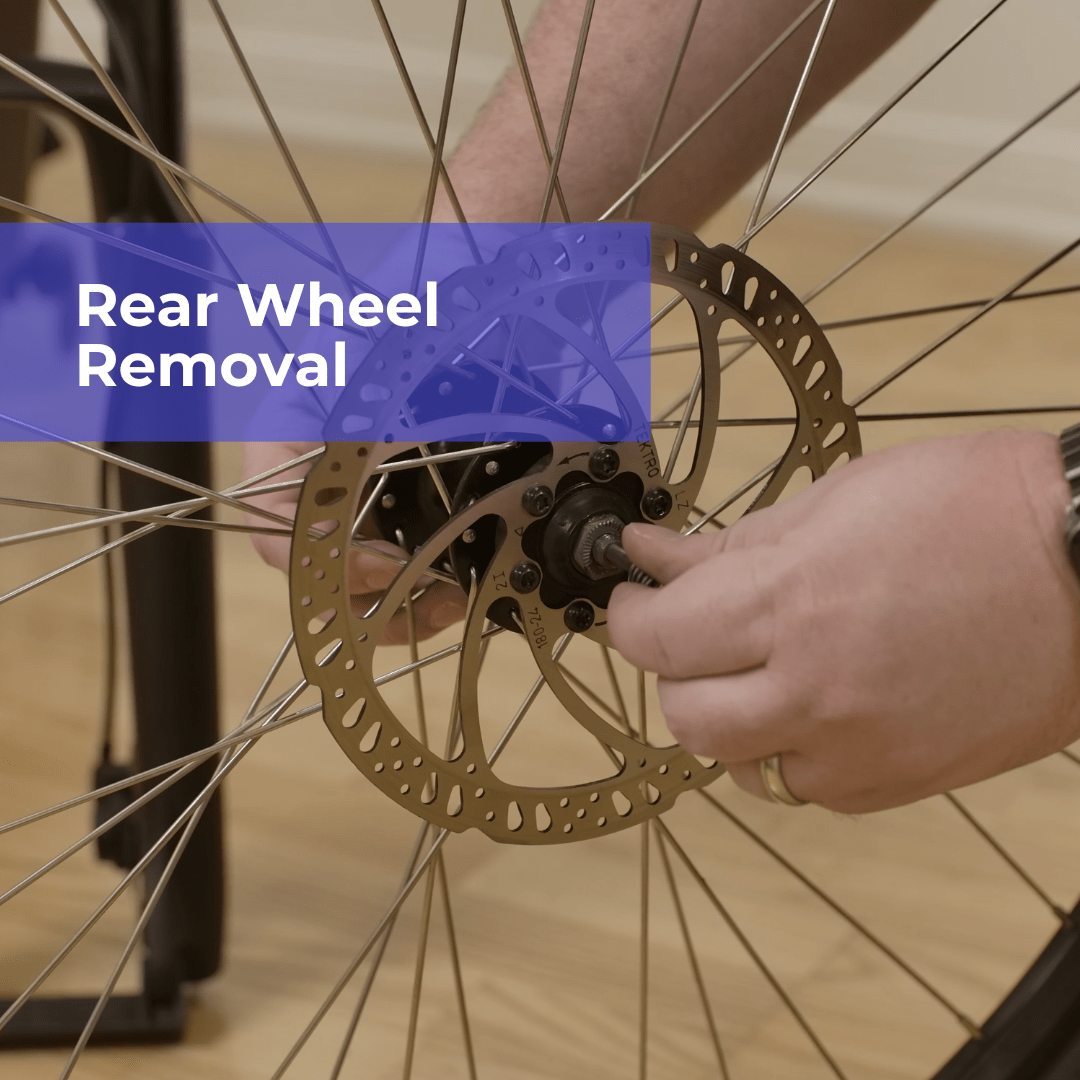

Step 4: Remove the Rear Wheel

  • Make sure the locking spacers are clear (a flathead screwdriver can help).
  • Carefully move the derailleur out of the way and guide the wheel down out of the frame dropouts.

Step 5: Reinstall the Wheel

  • Align the wheel under the frame, making sure the chain loops properly over the cassette.
  • Slide the axle into the dropouts and ensure the locking spacers are oriented correctly.
  • On the motor cable, reattach the derailleur guard, washer, and nut in that order.

Step 6: Secure the Rear Wheel

  • Tighten the nuts on both sides of the axle evenly and firmly.
  • Double-check alignment of the derailleur, chain, and spacers before final tightening.

Step 7: Reconnect the Motor

  • Plug the motor cable back in, aligning the arrows for a secure fit.
  • Attach new zip ties to keep the cable neatly secured to the frame.

You're Ready to Ride

That’s it! You’ve successfully removed and reinstalled the rear wheel on your Euphree electric bike. If you run into any issues, our USA-based support team is here to help—just give us a call.
