Stellar Falcon Mid-Step
Regular price
$2,299.00
Unit price
/
Unavailable
2 Year Warranty
180+ Euphree Dealers
Safety Certified
Technical Specifications
- Model: Stellar Falcon
- Range: Up to 70 miles
- Speed: 28 mph max
- Weight: 74 lbs
- Total Weight Capacity: 350 lbs
- Sensor System: Torque / Cadence
- Safety Certifications: SGS Certified, UL 2849
- Frame Material: Aluminum 6061 Alloy
- Frame Style: Mid Step

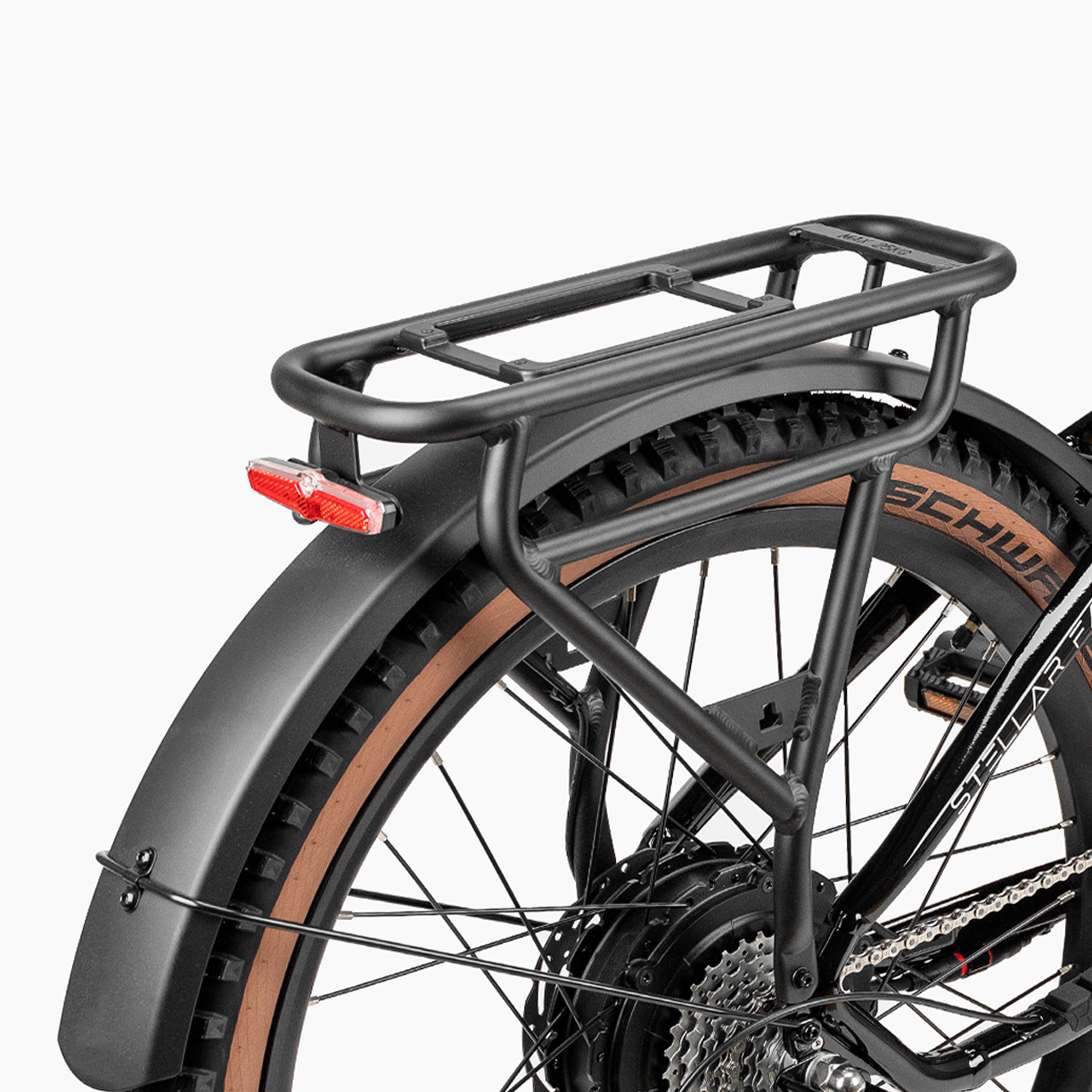

- Rear Rack: Bolt on frame
- Brakes: Tektro E350 Hydraulic Brakes
- Brake Lever: Adjustable with motor cut-off
- Brake Rotor: 180 mm front & rear
- Derailleur: Shimano Altus, 8-Speed
- Freewheel: 8-speed, 11 x 34T gearing
- Chain: KMC Z7 Stainless Steel
- Crank Set: Aluminum Alloy, 170 mm
- Chainring: 50T, Double sided
- Pedals: Polypropylene

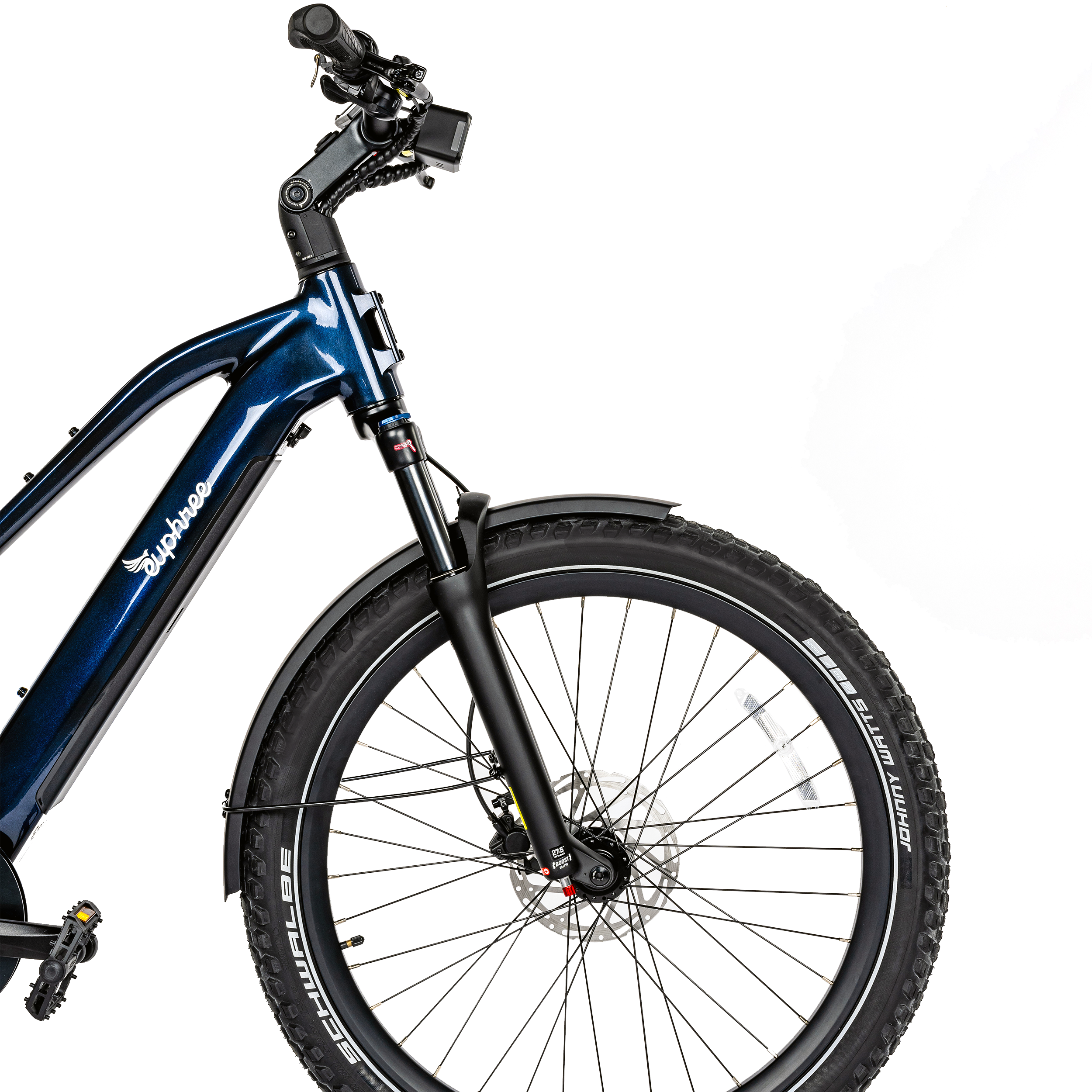

- Front Fork: SR Suntour X132, 110 mm travel, Air Suspension
- Tires: Schwalbe Johnny Watts 27.5 x 2.8”
- Rim: Double Walled Aluminum
- Spokes: 13G Front, 12G Rear
- Front Hub: Thru Axle
- Motor: 750W Bafang Geared Hub Motor
- Battery: 48V, 15Ah, 720Wh
- Controller: Euphree Custom 48V, 25 Amp in-frame
- Display: Left Side Color LCD Display
- Headlight: 200 Lumens Dual Beam LED
- Rear Light: Brake Light Signal, 220° Visibility
- Charger: 48V, 2 Amp Fast Charge
- Throttle: Thumb Throttle, Left
- USB Port: Type C USB Charging
- Handlebar: Straight with slight rise, Aluminum Alloy, 730mm
- Grips: Rubber Ergonomic Locking Grips
- Stem: Adjustable Aluminum Alloy, 110 mm
- Phone Mount: SP Connect Integrated
- Saddle: Velo Wide Comfort
- Seatpost: SR Suntour NCX Suspension, 400mm
- Fenders: Aluminum, Full Coverage
- Kickstand: Aluminum Alloy, Adjustable Foot
- Rear Rack: Welded In-frame
- Bike Weight: 74 lbs
- Rider Max Capacity: 350 lbs
- Front Rack Capacity: 30 lbs
- Rear Rack Capacity: 100 lbs
- Battery Certification: UL 2271
- Motor Certification: UL 2849
Sizing
| Rider Height | 5’4" - 6’2” |
| Seat Tube Length | 17 inches |
| Total Length | 73 inches |
| Wheelbase | 47 inches |
| Standover Height | 23.5 inches |
| Reach | 18 inches |
| Saddle Height | 34 - 42 inches |
| Handlebar Height | 44 - 48 inches |
More control, trail-ready build. Air suspension and 28mph power for adventurous riders.
Find Your Nearest Euphree Dealer
-
Mid-Step DesignQuick mount. Riders 5’6” to 6’2” -
All-Terrain TiresSchwalbe Johnny Watts 27.5 x 2.8" -
Rear Hub Motor750W sustained, 1200W peak -
Strobe LightingEnhanced visibility for safety
Easy to Mount
The mid-step frame makes getting on and off simple—no need to swing a leg high. Ideal for riders 5’6” to 6’2”.
110mm of travel
Premium Air Suspension for a Smooth Ride
Experience a ride so smooth you’ll forget you’re on rough terrain. The air suspension fork is designed to handle bumps, roots, and cracks with ease
Built to Climb
The 750W Bafang motor (1200W peak, 90Nm torque) gives you quick, smooth acceleration. Take hills, headwinds, or city traffic with confidence.
Long-Distance Battery
Ride up to 70 miles per charge with a 48V, 15Ah LG battery. SGS Certified to meet UL 2271 and UL 2849 safety standards.
Confident Tire Grip
Schwalbe Johnny Watts 27.5 x 2.8" tires offer excellent control on pavement or gravel without slowing you down.
Fully Equipped
Includes:
- Full metal fenders
- 58 lb rear rack
- Integrated lights
- SP Connect phone mount
Frame:
- Frame - Aluminum 6061 Alloy
- Frame Style - Step Through / Mid Step
- Rear Rack - Bolt on frame
Electronics:
- Motor - 750W Bafang Geared Hub Motor
- Battery - 48V, 15Ah 720Wh
- Controller - Euphree custom 48V, 25 Amp in frame
- Display - Left side, color LCD display
- Headlight - 200 Lumens dual beam LED headlight
- Rear Light - Brake light signal, 220 deg visibility
- Charger - 48V, 3 Amp fast charge
- Sensor - Bottom bracket torque sensor
- USB Port - Type C USB charging port
- Throttle - Thumb throttle, Left
Drivetrain:
- Brakes - Tektro E350 Hydraulic Brakes
- Brake Lever - Lever adjustment and motor cut off
- Brake rotor - 180 mm front & rear rotor
- Derailleur - Shimano Altus, 8 Speed
- Freewheel - 8 speed, 11 x 34T gearing
- Chain - KMC Z7 Stainless steel
- Crank set - Aluminum Alloy, 170 mm
- Chainring - 50T, Double sided
- Sensor - Torque / Cadence, Bottom Bracket
- Pedals - Polypropylene
Suspension & Wheelset:
- Front Fork - SR Suntour XCM X132 , 110 mm travel, Air Suspension
- Tires - Schwalbe Johnny Watts 27.5 x 2.8”
- Rim - Double walled Aluminum
- Spokes - 13G Front, 12G rear
- Front Hub - Thru Axle
Weight & Load:
- Bike weight - 74 lbs
- Rider Max Capacity - 350 lbs
- Front rack Capacity - 30 lbs
- Rear Rack Capacity - 100 lbs
