City Robin X+
-
2 Year Warranty -
SGS Certified
City Robin X+ Sizing
| Rider Height | 5’2" - 6’0” |
| Seat Tube Length | 15 inches |
| Total Length | 72 inches |
| Wheelbase | 46 inches |
| Standover Height | 17 inches |
| Reach | 16 inches |
| Saddle Height | 33 - 40 inches |
| Handlebar Height | 42 - 45 inches |
General Information
| Model | City Robin X+ |
| Range | Up to 60 miles |
| Speed | 28 mph max |
| Weight | 64 lbs |
| Total Weight Capacity | 350 lbs |
| Rider Height | 5’2” - 6’0” |
| Sensor System | Torque / Cadence |
| Safety Certifications | SGS Certified, UL 2849 |
Frame
| Frame Material | Aluminum 6061 Alloy |
| Frame Style | Step Through |

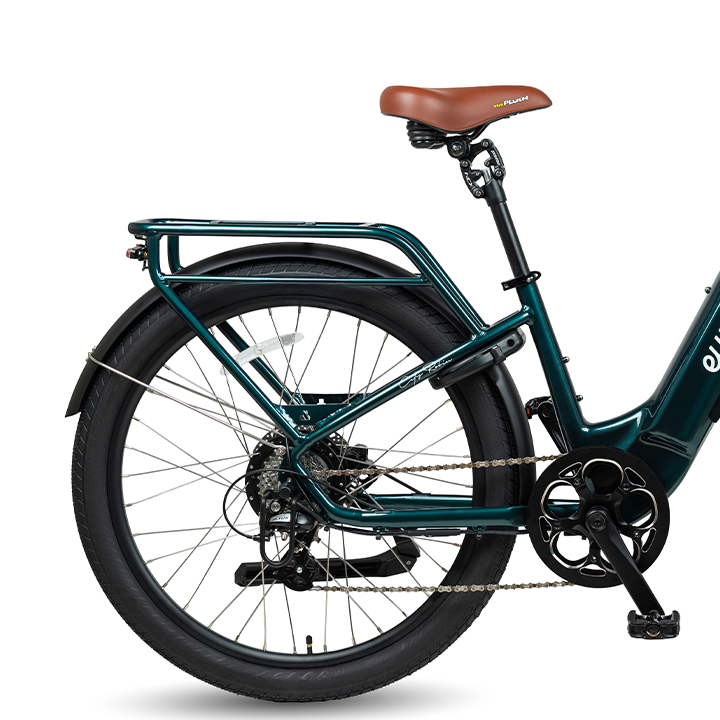

| Rear Rack | Welded in-frame |
Drivetrain
| Motor | Bafang Geared Rear Hub, 500W Sustained Power, 900W Peak Power, up to 80 Nm |
| Brakes | Tektro E350 Hydraulic Brakes |
| Brake Lever | Adjustable with motor cut-off |
| Brake Rotor | 180 mm front & rear |
| Derailleur | Shimano Altus, 7-Speed |
| Freewheel | 7-speed, 11 x 28T gearing |
| Chain | KMC Z7 Stainless Steel |
| Crank Set | Aluminum Alloy, 170 mm |
| Chainring | 50T, Double sided |
| Pedals | Aluminum with Rubber Grips |
Suspension & Wheelset
| Front Fork | SR Suntour XCM 32 Boost, 100 mm travel, preload & lockout adjustment |
| Tires | Kenda 27.5 x 2.4” |
| Rim | Double Walled Aluminum |
| Spokes | 13G Front, 12G Rear |
| Front Hub | Thru Axle |
Electronic
| Battery | 48V, 14Ah, 672Wh |
| Controller | Euphree Custom 48V, 20 Amp in-frame |
| Display | Left Side Color LCD Display |
| Headlight | 200 Lumens Dual Beam LED |
| Rear Light | Brake Light Signal, 220° Visibility |
| Charger | 48V, 3 Amp Fast Charge |
| Throttle | Thumb Throttle, Left |
| USB Port | Type C USB Charging |
Cockpit
| Handlebar | Curved Aluminum Alloy, 700mm |
| Grips | Faux Leather Ergonomic Locking Grips |
| Stem | Adjustable Aluminum Alloy, 90 mm |
| Phone Mount | SP Connect Compatible |
| Saddle | Velo Wide Comfort |
| Seatpost | SR Suntour NCX Suspension, 350mm |
Accessories
| Fenders | Aluminum, Full Coverage |
| Kickstand | Aluminum Alloy, Adjustable |
| Rear Rack | Welded In-frame |
Weight & Load
| Bike Weight | 64 lbs |
| Rider Max Capacity | 350 lbs |
| Front Rack Capacity | 30 lbs |
| Rear Rack Capacity | 100 lbs |
Certifications
| Battery Certification | UL 2271 |
| Motor Certification | UL 2849 |
Store Locator Map
-
Max RangeUp to 60 Miles -
Top SpeedReaches 28 MPH -
Full SuspensionSR Suntour 100mm -
Torque80nm
Every ride with the Euphree City Robin X+ Electric Bike isn’t just a journey
it’s a way to reconnect with the joys of the open road, free from worry and full of comfort.
Improved Comfort with Adjustable Handlebars on the City Robin X+
The City Robin X+ features fully adjustable handlebars, allowing riders to customize their riding position for maximum comfort. This design minimizes strain on the back and shoulders, making long rides more enjoyable.
Find Your Ideal Ride:

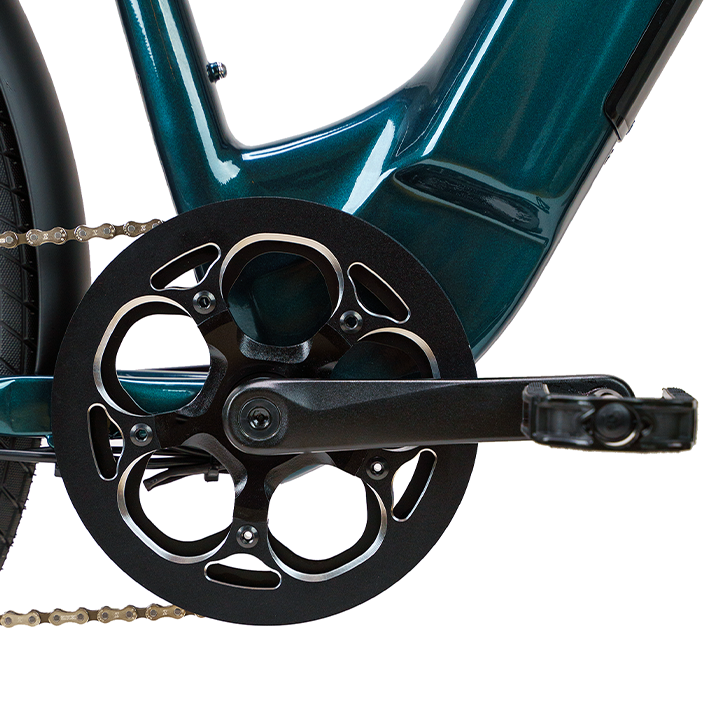

Experience seamless power delivery with the advanced torque sensor in the City Robin X+ Electric Bike. This intelligent system responds to your pedaling effort in real time, ensuring a smooth, natural ride with increased efficiency.
Kenda Durable City Tires
Durable 27.5” x 2.4” tires deliver excellent grip and control for a smoother, more confident ride on any surface.
Tektro Hydraulic Brakes
Tektro E350 hydraulic brakes (180mm) ensure smooth, consistent stops with safety features like lever adjustments and motor cut-off.
Shimano 7-Speed Drivetrain
Shift seamlessly through gears with the reliable Shimano Altus derailleur, built to handle both city streets and hilly trails.
Kenda Durable City Tires
Durable 27.5” x 2.4” tires deliver excellent grip and control for a smoother, more confident ride on any surface.
Tektro Hydraulic Brakes
Tektro E350 hydraulic brakes (180mm) ensure smooth, consistent stops with safety features like lever adjustments and motor cut-off.
Shimano 7-Speed Drivetrain
Shift seamlessly through gears with the reliable Shimano Altus derailleur, built to handle both city streets and hilly trails.
No third-party runarounds
Ride with Confidence: Integrated Cafe Lock, Brake Lights, and Full-Coverage Fenders
Integrated Brake Lights & Fenders
Stay visible with integrated brake lights, while full-coverage fenders keep you dry and clean on any ride.

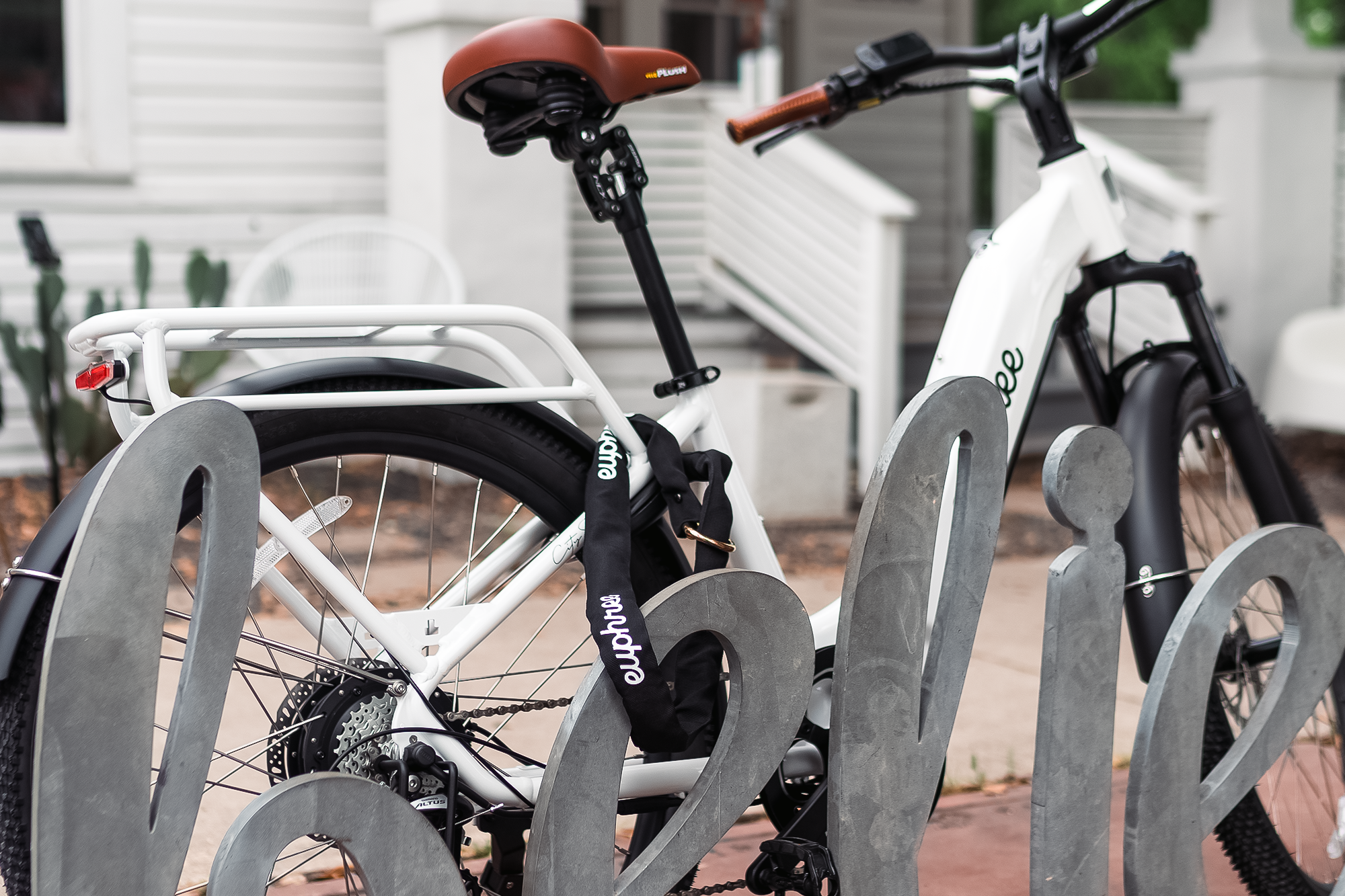

Quick-Stop Cafe Lock
Secure your bike in seconds with the integrated cafe lock, perfect for quick errands and hassle-free stops.
Premium Comfort Upgrades
Smooth Front Suspension
Experience a cushioned ride with the SR Suntour XCM 32 Boost front fork. With 100mm of travel and adjustable preload and lockout, this air suspension absorbs bumps on city streets and trails alike.
Comfort Seatpost Suspension
Stay comfortable on longer rides with the SR Suntour NCX suspension seatpost. It reduces road vibrations and absorbs shocks, giving you a smoother, more enjoyable ride.
Technical Specifications
Frame:
- Frame - Aluminum 6061 Alloy
- Frame Style - Step Through
- Rear Rack - Welded inframe
Drivetrain:
- Brakes - Tektro E350 Hydraulic Brakes
- Brake Lever - Lever adjustment and motor cut off
- Brake rotor - 180 mm front & rear rotor
- Derailleur - Shimano Altus, 7 Speed
- Freewheel - 7 speed, 11 x 28T gearing
- Chain - KMC Z7 Stainless steel
- Crank set - Aluminum Alloy, 170 mm
- Chainring - 50T, Double sided
- Sensor - Torque / Cadence, Bottom Bracket
- Pedals - Aluminum with Rubber Grips
Suspension & Wheelset:
- Front Fork - SR Suntour XCM 32 Boost, 100 mm travel, preload & lockout adjustment
- Tires - Kenda X 27.5 x 2.4”
- Rim - Double walled Aluminum
- Spokes - 13G Front, 12G rear
- Front Hub - Thru Axle
Electronics:
- Motor: Bafang Geared Rear Hub, 500W Sustained Power, 900W Peak Power, up to 80 Nm
- Battery - 48V, 14Ah 672Wh
- Controller - Euphree custom 48V, 20 Amp in frame
- Display - Left side, color LCD display
- Headlight - 200 Lumens dual beam LED headlight
- Rear Light - Brake light signal, 220 deg visibility
- Charger - 48V, 3 Amp fast charge
- Sensor - Bottom bracket torque sensor
- USB Port - Type C USB charging port
- Throttle - Thumb throttle, Left
Cockpit:
- Handlebar - Curved aluminum alloy, 700mm
- Grips - Faux leather ergonomic locking grips
- Stem - Adjustable, Aluminum Alloy, 90 mm
- SP connect phone mount
- Saddle - Velo wide comfort
- Seatpost - SR Suntour NCX suspension, 350mm
Accessories:
- Fenders - Aluminum, full coverage
- Kickstand - Aluminum alloy, Adjustable
- Rear Rack - Welded inframe
Weight & Load:
- Bike weight - 64 lbs
- Rider Max Capacity - 350 lbs
- Front rack Capacity - 30 lbs
- Rear Rack Capacity - 100 lbs
Certifications:
In Accordance with
- UL 2271
- UL 2849
Sizing
Rider Height 5’2" - 6’0”
Seat Tube Length 15 inches
Total Length 72 inches
Wheelbase 46 inches
Standover Height 17 inches
Reach16 inches
Saddle Height 33 - 40 inches
Handlebar Height 42 - 45
